The project addresses several challenges simultaneously, including the limited use of bamboo as a high-value construction material, the need for safe housing in disaster-prone areas, and the lengthy production and distribution chains commonly associated with construction materials. Through a vernacular manufacturing approach, bamboo processing can be carried out closer to communities living near bamboo-producing areas.

The innovation is expected to benefit bamboo growers and land managers, local businesses, and communities in need of adequate housing, including those affected by disasters. In addition to creating economic opportunities based on locally available resources, the modular bamboo house could accelerate the provision of permanent housing, reducing the amount of time disaster survivors must spend in temporary shelters. The initiative is relevant to the wider public because it offers a housing solution that integrates safety, environmental sustainability, and local economic empowerment.

Unlocking the Potential of Indonesian Bamboo

The Modular Bamboo House was developed by a multidisciplinary ITB team led by Permana, S.T., M.T., from the Architecture Study Program at ITB’s School of Architecture, Planning, and Policy Development (SAPPK). The research, titled “Development of a Knock-Down Architectural System for Modular Housing Based on Bamboo Engineering Technology,” also involved researchers from ITB’s School of Life Sciences and Technology (SITH).

The innovation was inspired by Indonesia’s vast bamboo resources, which have yet to be utilized to their full potential. Despite the country’s wide variety of bamboo species, the material is still often regarded as a secondary construction material associated primarily with temporary buildings or emergency shelters.

One challenge in using bamboo is the cylindrical form of its culms. This characteristic makes bamboo difficult to use directly for construction components that require specific dimensions, thicknesses, and widths.

At the same time, processing bamboo for premium markets can be costly. This prompted the ITB team to explore a method that could produce high-quality construction materials using a broader range of bamboo species through a more efficient production process.

An Interlocking System Inspired by Lego Blocks

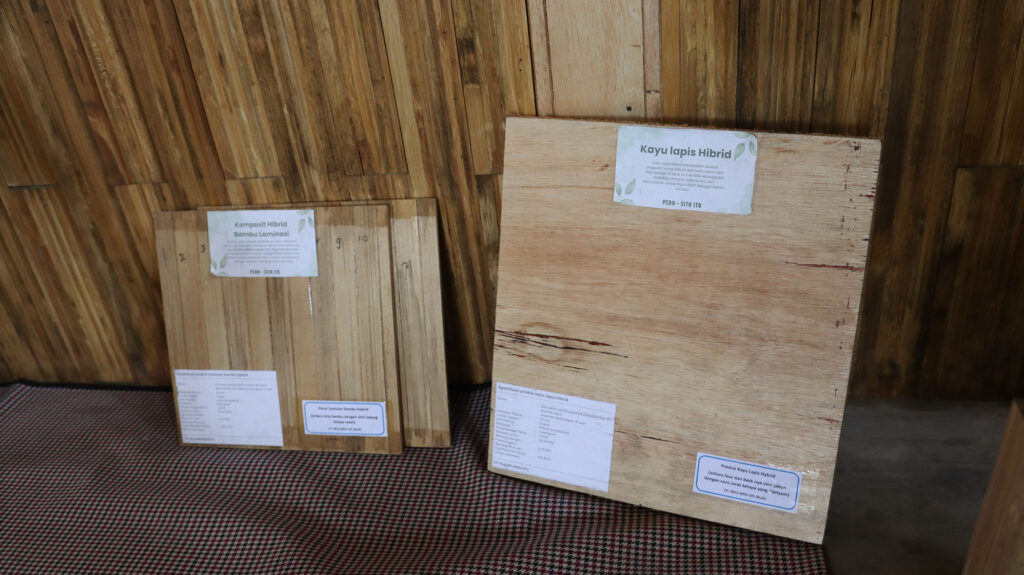

To address the limitations of bamboo’s natural shape, the research team applied a lamination technique. Bamboo culms are cut into small strips and bonded together until they achieve the dimensions and thickness required for construction components.

The team explored the use of several bamboo species, including bambu surat, bambu tali, bambu ampel, and bambu mayan. This approach allows production to use a wider range of bamboo varieties rather than relying solely on bambu betung, which is commonly used for engineered bamboo products.

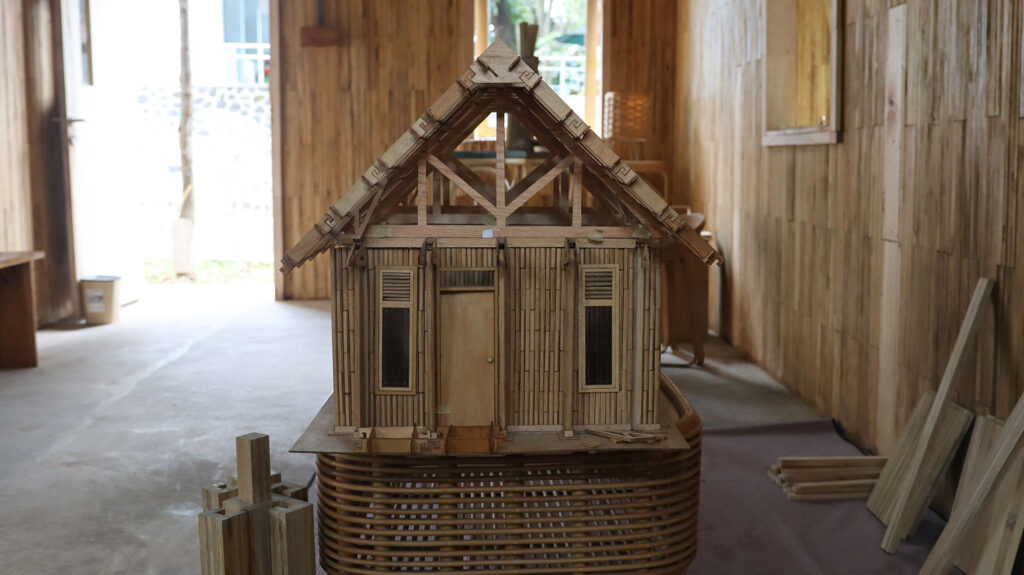

The laminated material is then formed into specially designed components measuring 30 or 60 centimeters in length. These components can be assembled using a knock-down system with an interlocking mechanism.

The components are installed in alternating patterns to create horizontal locking connections, while vertical connections rely on friction between the components. The combination of solid and hollow spaces within the system produces a structure that is both strong and flexible when responding to movement caused by earthquakes.

The modular concept makes the construction process resemble the assembly of Lego blocks. In addition to simplifying installation, the system allows components to be manufactured separately, stored, transported, and assembled according to local needs.

Bringing Production Closer to Communities

ITB’s Modular Bamboo House was developed not only as an architectural product but also as part of a vernacular manufacturing concept. This approach places local communities at the center of the building component production process.

SITH ITB researcher Dr. Rudi Dungani explained that production activities could be brought closer to communities living near bamboo forests or plantations. The bamboo can be processed using lightweight manual machinery that does not depend on electricity.

Through this approach, communities would no longer be limited to selling bamboo as a raw material. Instead, they could process it into permanent building components with greater economic value. Producing the components close to the source of the raw material could also simplify supply chains and reduce transportation costs.

This model creates opportunities for locally based bamboo industries. Communities could participate in bamboo cultivation, harvesting, processing, component manufacturing, and building assembly. Consequently, the benefits of the innovation would be experienced not only by homeowners but also by the communities producing the components.

An Alternative for Post-Disaster Housing

The modular system offers the potential for bamboo houses to be prepared as permanent housing before disasters occur. Building components could be produced and stored in advance, then transported and assembled when needed.

This approach could help accelerate the transition of disaster-affected communities from emergency tents to more adequate housing. Providing permanent housing more quickly is also important for supporting the social and psychological recovery of disaster survivors.

Beyond post-disaster response, the modular bamboo housing system could be developed as an alternative for meeting national housing needs. As a renewable resource, bamboo also offers a more sustainable construction approach than materials that require energy-intensive manufacturing processes.

Building a Bamboo-Based Housing Ecosystem

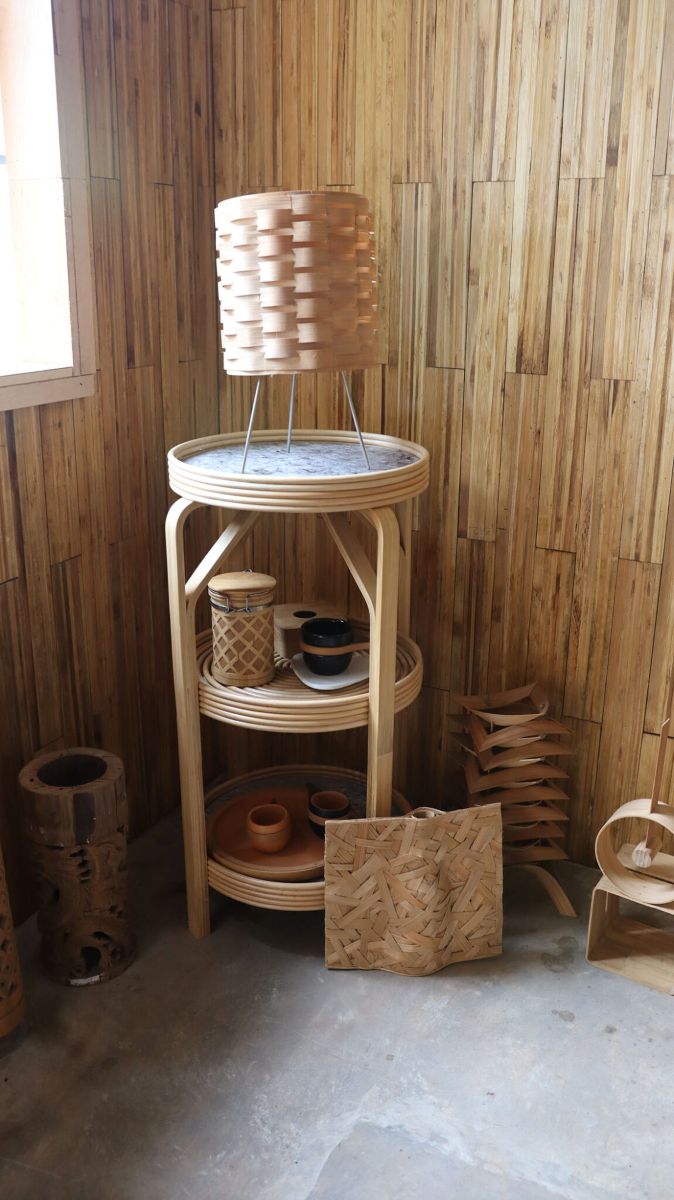

The research team aims to develop a broader bamboo-based housing ecosystem that includes not only the building structure but also household furnishings such as beds, dining tables, and other essential items.

The development of such an ecosystem requires multidisciplinary collaboration involving architecture, material engineering, forestry, product design, civil engineering, manufacturing, economics, and community empowerment.

The team is also working toward achieving 100 percent domestic component utilization and developing a zero-metal housing concept. Under this concept, the structure would use wooden or bamboo joints and pegs without relying on metal nails.

Through the Modular Bamboo House, ITB demonstrates how local knowledge and modern technology can be combined to produce innovations that respond to the needs of society. Bamboo is positioned not merely as a traditional material but as a strategic resource for creating housing that is safe, sustainable, and capable of generating added economic value for local communities.
